Installing windshield
- Prepare the glue cartridge with the standard nozzle C.
- Apply bead joint in area (1) .
- Apply adhesive bead within the mark on the windshield.
Cut A - A B - B C - C a = Position of the adhesive bead 2 ±2 mm 3 ±2 mm 2 ±2 mm b = Width of adhesive bead 8 ±1 mm 8 ±1 mm 8 ±1 mm h = Height of adhesive bead 12 ±1 mm 12 ±1 mm 12 ±1 mm - Adhere to the geometry of the adhesive bead to make sure that one glue cartridge is sufficient for the complete windshield.
- Carefully perform the following operations on the windshield (1)
with suction lifter:
- running it in parallel to the A-pillar
- feed it in the area (A) on left and right below the side panel
- Position at top
- Align sides evenly
- Press upwards until seal rests evenly on roof
- press evenly all around
- fix with adhesive tape on the roof
- Measure the recessed (A) of the windshield (1) to the roof outer skin (2) with the special tool 0 495 259 (51 0 010) .
- Adjust the recessed (A) .
TECHNICAL DATA SPECIFICATION
| Gap dimension windshield to roof outer skin | ||
|---|---|---|
| 1 windshield; 2 roof outer skin | a | 4.3 +1-1 mm |
| b | 2.5 +1.5-1.5 mm | |
- Position the windshield (1) in such a way that the rubber frame (3) lies even and parallel to the roof outer skin (2) .
NOTE:
Perform the steps on the right and left side.

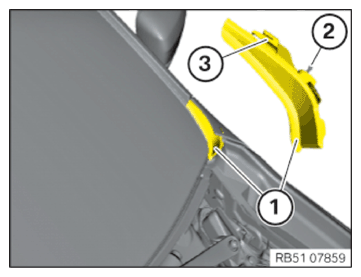

- Mount the cover (1) and attach it to the guide (3) .
- Engage the cover (1) at the clip (2) .
Follow-up work
- Refer to CONNECTING CONNECTOR TO THE RAIN-LIGHT-SOLAR-CONDENSATION SENSOR .
- Refer to INSTALLING THE KAFAS CAMERA WITH THE INTEGRATED CONTROL UNIT .
- Refer to INSTALLING THE INTERIOR REARVIEW MIRROR .
- Refer to INSTALLING THE COVERS FOR THE INTERIOR REARVIEW MIRROR .
- Refer to INSTALLING A-PILLAR TRIM PANEL .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING GUTTER STRIP ON THE WINDSHIELD .
- Refer to CALIBRATE KAFAS CAMERA .
