Installing starter motor

• Guide in the starter motor (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the starter motor (1) carefully in the marked area as shown above the acoustic cover (2).

  Installation is not possible without positioning the starter motor.

  Courtesy of BMW OF NORTH AMERICA, INC.

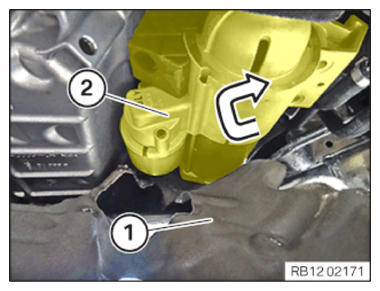

• Make sure that the acoustic cover (1) is not damaged  .
• Fold the acoustic cover (1) carefully  downwards.
• Install and position the starter motor (2) in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Starter motor to engine
  M8X60	tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the acoustic cover (2).
• Secure expanding rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Fasten expanding rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Fasten expanding rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and position the positive battery cable (2).
• Secure clamps (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure fir tree clip (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (2) and lock.

  The connector (2) must engage audibly.

• Tighten the nut (1) hand-tight.

  Courtesy of BMW OF NORTH AMERICA, INC.

  CAUTION: Improper routing of the positive battery cable.
  Risk of short circuits!

  • Route the positive battery cable without abrasions and do not trap.
• Attach the positive battery cable (1) correctly  to antitwist lock (2).
• Tighten nut (3).
  TIGHTENING TORQUES SPECIFICATION



  Battery positive lead to starter
  M8	Tightening torque	13.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
• Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
• Refer to RECONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
