Remove top automatic air flap control/air duct
Preliminary work
- Remove front bonnet SEAL .
- Remove the top right and left engine compartment COVER .
- Remove front ORNAMENTAL GRILLE .
- Partially remove both front wheel arch TRIMS .
- Partly remove the front sections of both wheel front arch COVERS .
- Remove front bumper COVER .

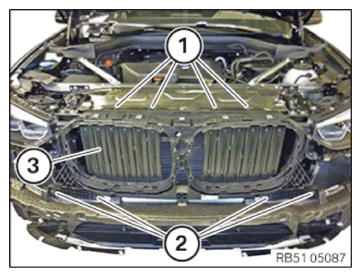

- Loosen screws (1).
- Loosen screws (2).
- Remove the air flap control (3) forwards.
- Unlock associated plug connection and disconnect.
