Body Equipment -- Repair (2 Of 2) (G01)
>>
51 76 Seals
>>
51 76 031 Removing and installing/replacing the hood seal at the front (X3)
>>

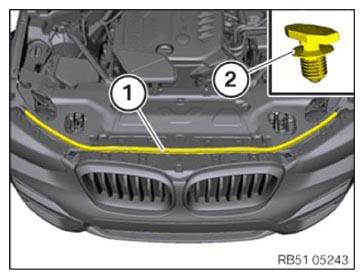

Removing seal for front bonnet
Removing seal for front bonnet
Unclip and remove the seal for the front bonnet (1) from the clips (2) in an upward direction.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
