Removing the loading edge trim
Preliminary work
- Remove the luggage compartment FLOOR COVERING .
- Remove both flaps in the luggage compartment TRIM PANEL .
- Remove both lower d-pillar TRIM PANELS .
- Partially detach the rear luggage COMPARTMENT WELL .

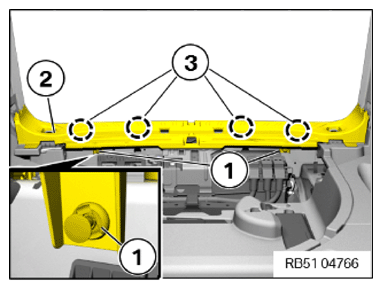

- Loosen the expanding rivet (1).
- Unclip loading edge trim (2) upwards from detents (3).
- Feed out the loading edge trim (2) under the sealing lip of the seal for the trunk lid.
