Body Equipment -- Repair (2 Of 2) (G01)
>>
51 47 Floor-Trunk-Engine Compartment-Trim Panel
>>
51 47 102 Removing and installing/replacing the luggage compartment floor covering (X3 except PHEV)
>>
Removing the luggage compartment floor covering
Removing the luggage compartment floor covering

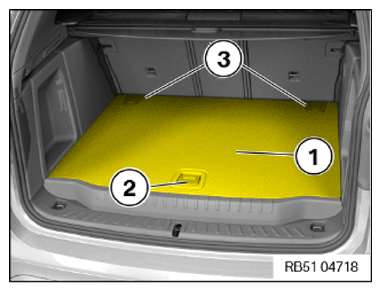

Unlock the luggage compartment floor covering (1) at the handle (2), slightly lift and remove towards the rear from the detents (3).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
