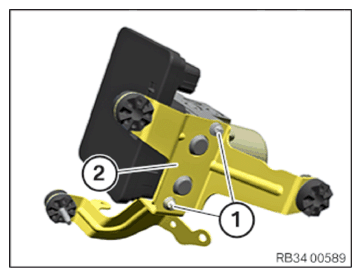

Remove the DSC control unit
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: 61 35... NOTES on ESD (electrostatic discharge) protection
NOTE:
TECHNICAL INFORMATION
Maintain conditions of absolute cleanliness.
Maintain conditions of absolute cleanliness.
Preliminary work
- Install brake PEDAL TENSIONER .
- Remove the front UNDERBODY PROTECTION .
- Remove the COOLANT EXPANSION TANK for the low-temperature coolant circuit.
- Remove COOLANT EXPANSION TANK .
- Remove left FRONT-END STRUT .
- Remove HYDRAULIC UNIT .
- Remove the rear left engine compartment COVER .
NOTE:
TECHNICAL INFORMATION
Maintain conditions of absolute cleanliness.
Maintain conditions of absolute cleanliness.
