Install the decorative strip on the right dashboard

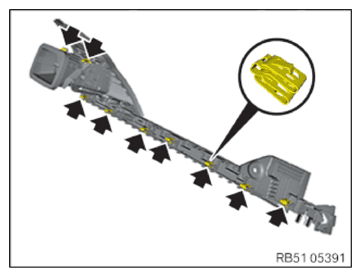

• Check the clamps (arrows) for damage and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect associated connector.
• Correctly position the decorative strip on the right (3) and clip into the clamps (2).
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Install center dashboard DECORATIVE STRIP .
