Install decorative strip on center of dashboard

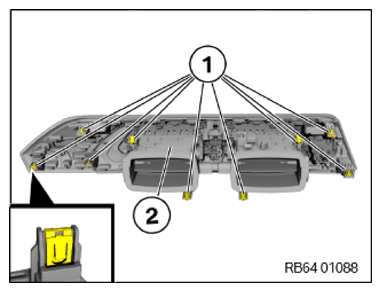

• Check the clamps (1) for damage and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

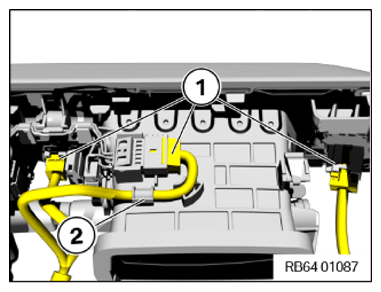

• Connect connector (1).

  The connectors must engage audibly.

• Clip the wiring harness into the holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

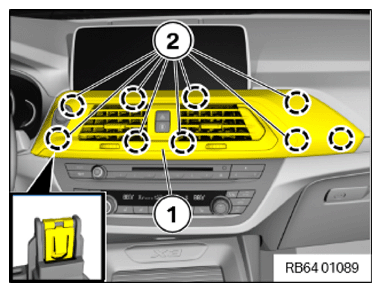

• Correctly position the decorative strip (1) and clip onto the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.
