Installing the positive battery cable from the starter motor to the auxiliary terminal for jump starting

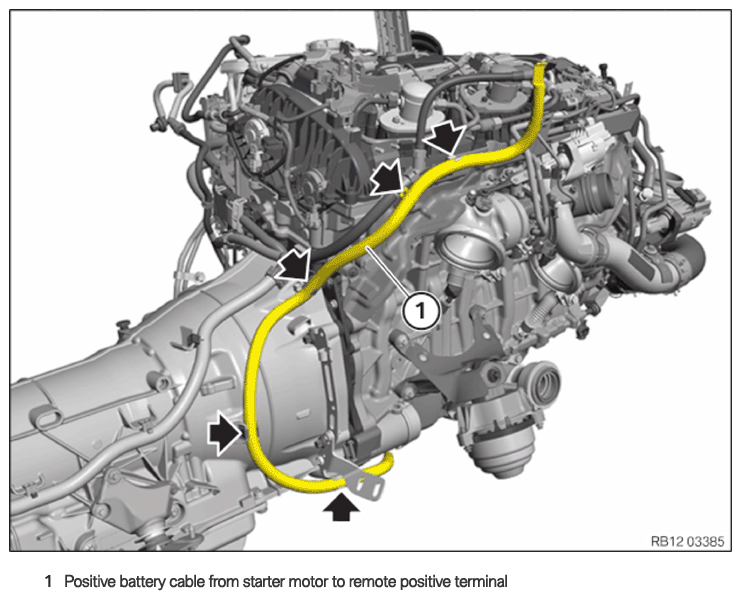

Positive battery cable from the starter motor to the remote positive terminal

Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the positive battery cable (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Guide positive battery cable (3) into the holder (arrow).
• Guide positive battery cable (3) into the starter motor.
• Hand-tighten the nut (2).
• Connect connectors (1) and lock.

  The connector (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

  CAUTION: Improper routing of the positive battery cable  .
  Risk of short circuits!

  • Route the positive battery cable without abrasions and do not trap.
  NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Attach the positive battery cable (1) correctly to anti-twist lock (2).
• Tighten nut (3).
  TIGHTENING TORQUES SPECIFICATION



  Battery positive lead to starter
  M8	tightening torque	15 Nm

• Feed the positive battery cable (1) into the holder (arrows) and install it.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the retaining plate (2).
• Replace nuts (1).

  Parts:  Nuts

• Tighten nuts (1).
  TIGHTENING TORQUES SPECIFICATION



  Retaining plates for vehicle underbody cover
  Sheet metal nut/plastic nut Replace nuts.	tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed the positive battery cable (1) into the holder (arrow) and install it.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed the positive battery cable (2) into the holder (arrows) and install it.
• Tighten nut (1).
  TIGHTENING TORQUES SPECIFICATION



  Battery positive lead to battery positive terminal
  M8	tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in and install the cover (2) in arrow direction. The locks (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING INTAKE FILTER HOUSING .
• Refer to INSTALLING THE STRUT BRACE .
• Refer to INSTALLING THE SEAL FOR THE HOOD GASKET LEFT AND RIGHT .
• Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 4-6 .
• Refer to INSTALLING RIGHT AIR DUCT .
• Refer to CONNECTING NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
• Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
