Removing the component carrier
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
WARNING:
Hot fluids
.
Risk of scalding!
Risk of scalding!
- Conduct all work in the vehicle wearing appropriate personal protective equipment only.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Preliminary work
- Refer to SUCTION THE AIR CONDITIONING .
- Refer to DISCONNECTING THE NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
- Refer to REMOVING THE ENGINE COMPARTMENT COVER PANEL IN THE REAR LEFT AND RIGHT .
- Refer to REMOVING THE TOP RIGHT AND LEFT COVER IN THE ENGINE COMPARTMENT .
- Refer to REMOVING STAND FOR THE HOOD GASKET LEFT AND RIGHT .
- Refer to REMOVING FRONT CROSS CONNECTION .
- Refer to REMOVING THE LEFT AND RIGHT FRONT-END STRUT .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to REMOVING THE LEFT-HAND AIR DUCT .
- Refer to REMOVING THE RIGHT AIR DUCT .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
- Refer to REMOVING THE FRONT RIGHT LOWER WHEEL ARCH COVER .
- Refer to DRAINING THE COOLANT FOR THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to CONNECTING THE COOLANT LINE TO THE RADIATOR .
- Refer to REMOVING FAN COWL .
- Refer to REMOVING THE CHARGE AIR DUCT FOR CYLINDERS 1-3 .
- Refer to REMOVING THE CHARGE AIR DUCT FOR CYLINDERS 4-6 .
- Refer to REMOVING THE DRIVE BELT FOR ALTERNATOR .
- Refer to REMOVING THE ALTERNATOR .
- Refer to REMOVING THE AIR CONDITIONING CONDENSER PARTIALLY .
- Refer to PARTIALLY REMOVING THE AUXILIARY COOLANT PUMP .
- Refer to REMOVING AIR CONDITIONING COMPRESSOR .

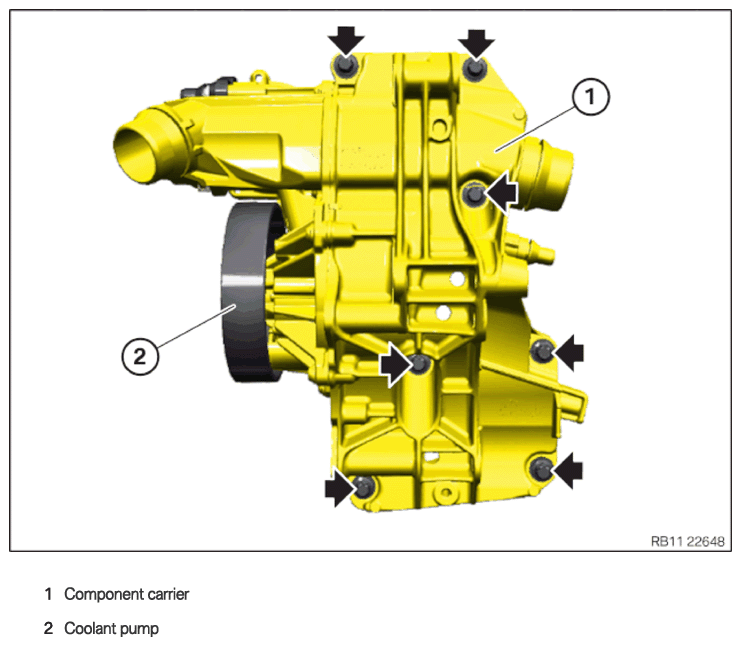

Component carrier
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
- Unlock and release coolant line (1) .
- Catch and dispose of leakage coolant.
- Unlock plug connection (2)
and disconnect.
- Unlock and release coolant line (1) .
- Catch and dispose of leakage coolant.
- Loosen clamp (2)
.
- Loosen screw (1) .
- Thread out holder (2)
and set aside.
- Loosen screws (1)
.
- Loosen screws (1)
.
- Feed out component carrier (1) and remove.
- Catch and dispose of leakage coolant.
