Install the trim on the rear bumper panel

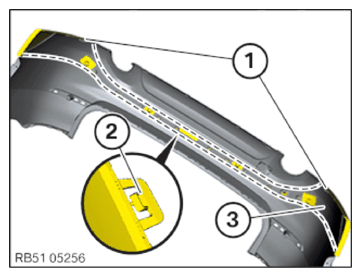

• Position the trim on the rear bumper panel (3)  and engage into the detents (2)  along the marked line.
• Tighten the screws (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Bumper panel, rear
  Hexagon screw	Tightening torque	2.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR BUMPER COVER .
• Refer to INSTALLING THE LEFT AND RIGHT REFLECTOR .
• Refer to INSTALLING BOTH TAIL LIGHTS ON THE SIDE PANEL .
• Refer to INSTALLING THE FLAP IN THE RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
• Refer to INSTALLING THE FLAP IN THE LEFT LUGGAGE COMPARTMENT TRIM PANEL .
