Install both tail lights on the side panel

Install the tail light on the side panel

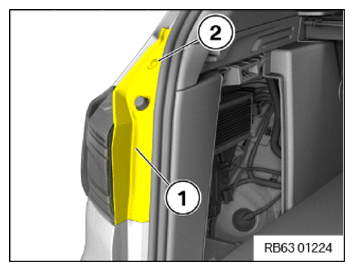

• Check the seals (1) for damage; replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: RISK OF DAMAGE
  Careless handling of tools and sharpened components  .
  Scratches, surface damage  .

  • Protect working area.
  • Handle tools and components carefully.

  Courtesy of BMW OF NORTH AMERICA, INC.

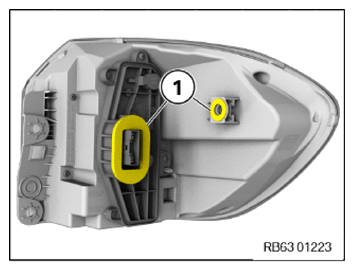

• Connect connectors (2) and lock.

  The connector must engage audibly.

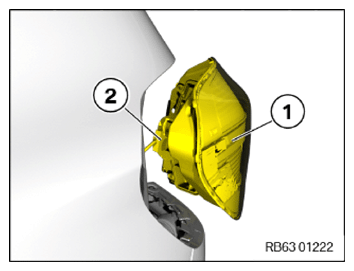

• Position the tail light (1).
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Tail light to side panel
  M6x16	Tightening torque	2.5 Nm

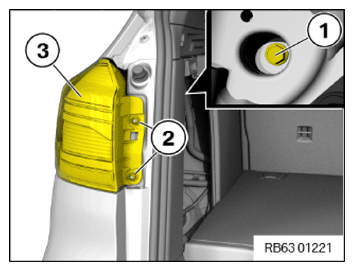

• Align the tail light (3) so that the tail light (3) is flush with the vertical edge of the bumper cover.
• Replace nuts (2).

  Parts:  Nut

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten nuts (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Tail light to side panel
  Nut M6 Replace nut.	tightening torque	2.5 Nm

• Position the cover (1) of water channel and secure with the clip (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

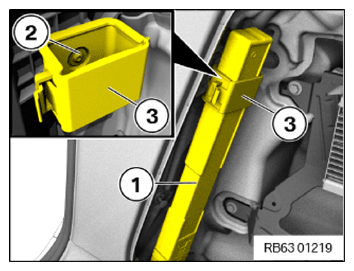

• Position the holder (3) of the warning triangle (1) and tighten the screw (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Warning triangle holder
  screw	Tightening torque	2.7 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the warning triangle (1).

Follow-up work

• Refer to INSTALLING THE FLAP IN THE RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
• Refer to INSTALLING THE FLAP IN THE LEFT LUGGAGE COMPARTMENT TRIM PANEL .
