When replacing the module bracket on the front door: Remount components

Preliminary work

• Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to REMOVING THE MIRROR TRIANGLE COVER .
• Refer to REMOVING THE TRIM OF THE DOOR HANDLE .
• Refer to REMOVING FRONT DOOR TRIM PANEL .
• Refer to REMOVING THE OUTSIDE REARVIEW MIRROR FROM THE FRONT DOOR .
• Refer to REMOVING THE WINDOW CHANNEL STRIP ON THE OUTSIDE OF THE FRONT DOOR .
• Refer to REMOVING THE MODULE BRACKET FROM THE FRONT DOOR .

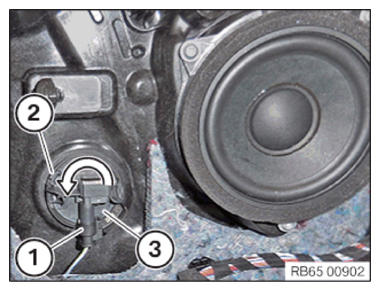

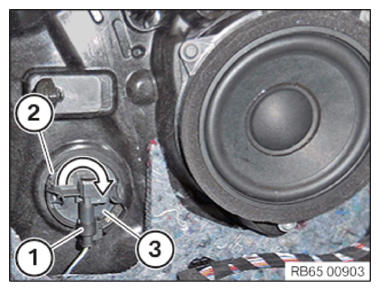

Removing airbag sensor from the front door

• Unlock and disconnect connector (1).
• Unlock the detent (2).
• Turn airbag sensor (3) in the arrow direction and remove.

  Courtesy of BMW OF NORTH AMERICA, INC.

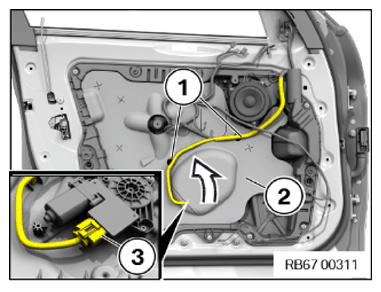

  Removing flat motor for the front power windows

• Release wiring harness with the detents (1).
• Lift the sound insulation (2) in the area of the flat motor.
• Unlock plug connection (3) and disconnect.

  Courtesy of BMW OF NORTH AMERICA, INC.

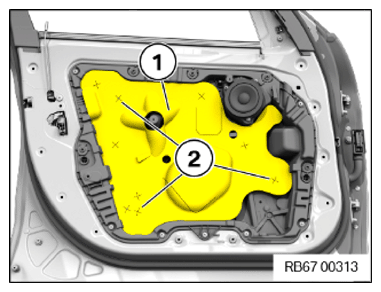

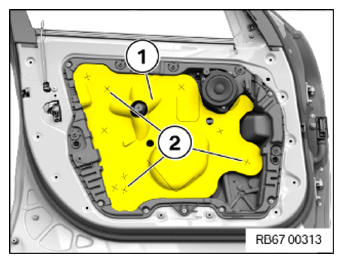

• Feed out and remove the sound insulation (1) at the openings (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

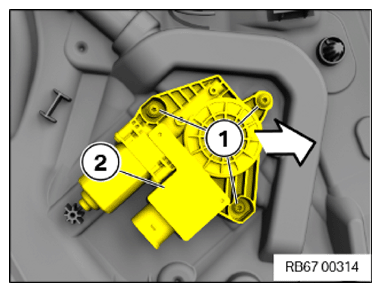

• Undo screws (1) and remove the flat motor (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

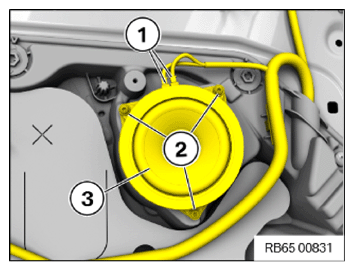

  Remove the loudspeaker on the front door

• Unlock and disconnect connector (1).
• Unscrew the screws (2) and remove the loudspeaker (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the module bracket on the front door.

  Parts:  Module bracket

  Installing airbag sensor in the front door

• Correctly position the airbag sensor (3) and turn it in the direction of the arrow until the detent (2) engages.
• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Installing flat motor for front power windows

• Position flat motor (1) and tighten the screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Flat motor to module carrier
  Thermoplastic screw	Tightening torque	6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the sound insulation (1) at the openings (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

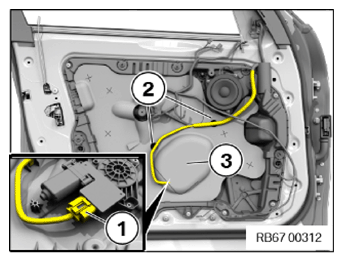

• Connect connectors (1) and lock.
• Clip in the wiring harness with the detents (2).
• Mount sound insulation (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

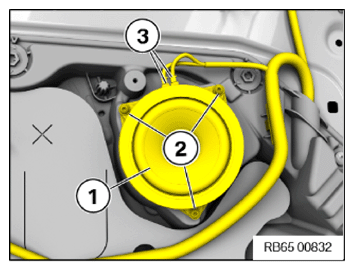

  Installing the loudspeaker on the front door

• Position the loudspeaker (1) and tighten the screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Door loudspeaker
  screw	Tightening torque	2.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (3) and lock.

Follow-up work

• Refer to INSTALLING THE MODULE BRACKET ON THE FRONT DOOR .
• Refer to INSTALLING THE WINDOW CHANNEL STRIP ON THE FRONT DOOR ON THE OUTSIDE .
• Refer to MOUNTING THE OUTSIDE REARVIEW MIRROR ONTO THE FRONT DOOR .
• Refer to INSTALLING FRONT DOOR TRIM PANEL .
• Refer to MOUNTING TRIM OF DOOR HANDLE .
• Refer to MOUNTING MIRROR TRIANGLE COVER .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
