Remove the module bracket from the front door

• Secure the side window glass to the door frame at the top when it is closed using adhesive tape.
• Spread both holders simultaneously (1) on the side window glass using special tool 0 496 569 (00 9 325)  until it is possible to detach the side window glass.
• Shift power windows down by approximately 10 cm.

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnecting all battery ground leads

See ADDITIONAL INFORMATION .

Courtesy of BMW OF NORTH AMERICA, INC.

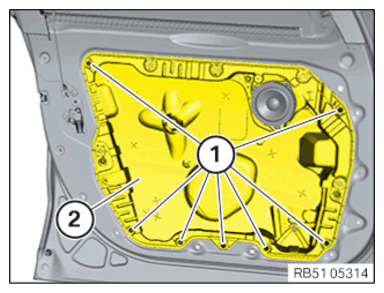

• Unlock and disconnect all plug connections on the module carrier (2).

• Release all the cable clips of the wiring harness from the module carrier (2).
• Loosen screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

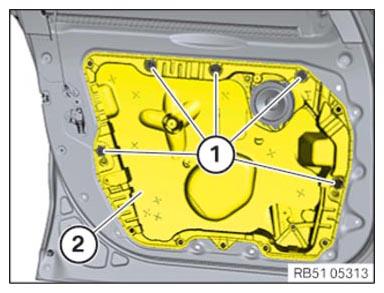

• Release the snap fasteners (1) and feed out the module bracket (2).

Courtesy of BMW OF NORTH AMERICA, INC.
