Installing the spindle drive

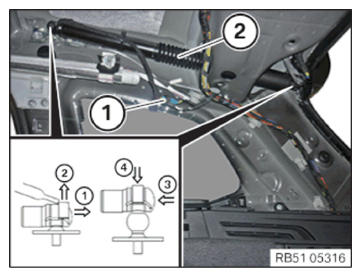

• Position the spindle drive (2)  on the ball hub with the ball socket and snap it in with force.
• Connect connectors (1)  and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE HEADLINING ON THE LEFT OR RIGHT .
• Refer to INSTALLING THE RIGHT HANDS-FREE MICROPHONE .
• Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
• Refer to INSTALLING THE VANITY MIRROR LIGHT AT THE FRONT LEFT OR RIGHT .
• Refer to INSTALLING THE COUNTER SUPPORT FOR THE SUN VISOR .
• Refer to INSTALLING THE SUN VISOR .
• Refer to INSTALLING A-PILLAR TRIM PANEL .
• Refer to INSTALLING THE INTERIOR REARVIEW MIRROR .
• Refer to INSTALLING THE COVERS FOR THE INTERIOR MIRRORS .
• Refer to INSTALLING REAR INTERIOR ROOF LIGHT .
• Refer to INSTALLING THE HOLDER ON LEFT OR RIGHT .
• Refer to INSTALLING THE UPPER B-PILLAR TRIM PANEL .
• Refer to INSTALLING C-PILLAR TRIM PANEL .
• Refer to INSTALLING D-PILLAR TRIM PANEL .
• Refer to WHEN REPLACING THE SPINDLE DRIVE .
