Installing D-pillar trim panel
NOTE:
Description is for left component only. Procedure on the right side is identical.

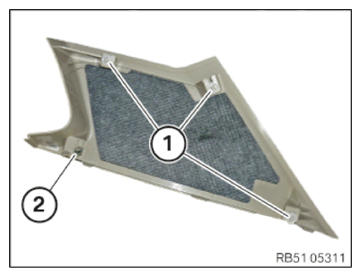

- Check, if the clips (1) and the clamp (2) are damaged or missing and if necessary, replace the D-pillar trim panel.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

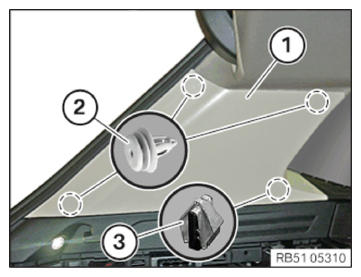

- Attach the D-pillar trim panel (1) to the clamps (3) and engage the clips (2).
- Make sure that the D-pillar trim panel (1) is correctly positioned on the tailgate seal.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
