Install the rear window

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .

Protect working area.
Handle tools and components carefully.

NOTE: TECHNICAL INFORMATION
Secure component against falling.

NOTE: TECHNICAL INFORMATION
Bonding surfaces must be dry and free of dust and grease. After the adhesive area has been cleaned, it must no longer be taped with bare hands.

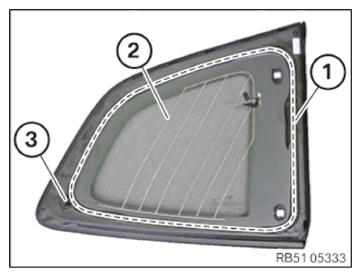

Remove the adhesive bead (1) from the side window glass (2) and the body with a scraper.
If applicable, remove protruding centering pins from the side window glass (2) and the body.
Replace the damaged hook and loop tape (Dual Lock tape) (3) on the side window glass (2) and the body.

Courtesy of BMW OF NORTH AMERICA, INC.
Secure the special tool 0 492 609 (51 3 010) on the side window (lightly moisten the suction lifters).
Clean the bonding surfaces on the side window (2) and the body.
Apply the adhesive bead (1).
For reuse of the side window glass, apply the adhesive bead to the cut back adhesive bead of the side window glass.
For use of a new side window glass, apply the adhesive bead on the cut back adhesive bead of the body.

Courtesy of BMW OF NORTH AMERICA, INC.

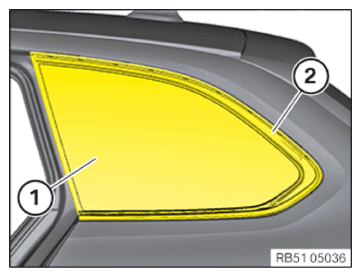

Insert the side window glass (1) with the special tool 0 492 609 (51 3 010) and align it to the body.
The seal (2) must rest evenly and parallel to the roof.
Engage the side window (1) in the Velcro fastener (Dual Lock tape).
Secure the side window (1) with the yellow plastic adhesive tape on the body.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect the plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING D-PILLAR TRIM PANEL .
Refer to INSTALLING C-PILLAR TRIM PANEL .
Refer to INSTALLING THE TRIM STRIP AT THE REAR WINDOW .
