Remove the trim panel of the luggage compartment capping

Preliminary work

• Refer to REMOVING THE LUGGAGE COMPARTMENT REMOVABLE PANEL .
• Refer to REMOVING THE LOADING EDGE TRIM .
• Refer to REMOVING THE COMPACT SPARE WHEEL .
• Refer to REMOVING THE VEHICLE TOOL KIT .
• Refer to REMOVING THE HOOK AND LOOP TAPE FOR THE VEHICLE TOOL KIT .
• Refer to REMOVING THE LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to REMOVING REAR ENTRANCE COVER STRIP .
• Refer to REMOVING THE BOTTOM C-PILLAR TRIM PANEL .
• Refer to REMOVING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON LEFT .

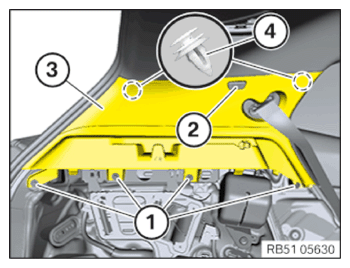

• Loosen screws (1)  .
• Remove the cover (2)  with a suitable plastic wedge and release the underlying screws.
• Release the trim panel (3)  of the luggage compartment capping from the clips (4)  .
• Pull the end fitting out and remove the trim panel (3)  of the luggage compartment capping.

  Courtesy of BMW OF NORTH AMERICA, INC.
