Removing the compact spare wheel
Removing the compact spare wheel

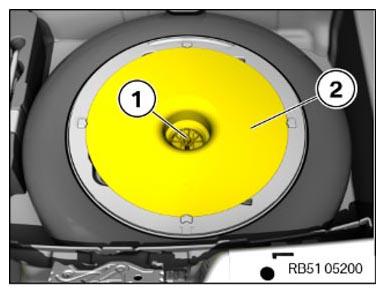

Loosen screw (1).
Remove the cover (2).
Courtesy of BMW OF NORTH AMERICA, INC.

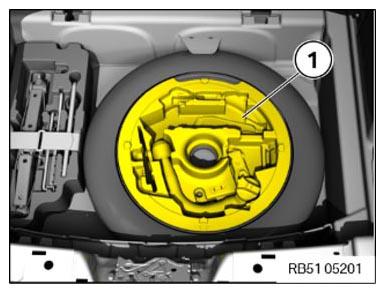

Remove shelf from the emergency wheel (1).
Courtesy of BMW OF NORTH AMERICA, INC.

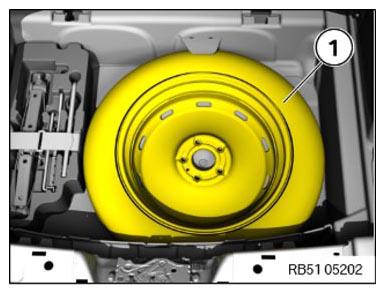

Remove emergency wheel (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
