Removing clean air pipe

Preliminary work

• Refer to REMOVING THE ACOUSTIC COVER .
• Refer to REMOVING REAR HOOD SEAL .
• Refer to REMOVING FRONT WINDSHIELD PANEL COVER .
• Refer to REMOVING THE UPPER FIREWALL COVER PANEL .
• Refer to REMOVING THE INTAKE MANIFOLD FOR INTAKE SILENCER HOUSING .
• Refer to REMOVING INTAKE SILENCER HOUSING .
• Refer to REMOVING SUSPENSION CROSS-BRACE .
• Refer to REMOVING THE REAR BULKHEAD .

• Unlock and release the engine ventilation lines (1) from the clean air pipe.
• Unlock and release the engine ventilation line (2) from the cylinder head cover.
• Loosen screw (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

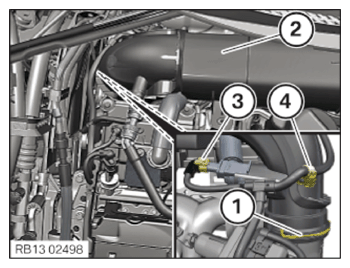

• Unlock and release the clamp (1) (2) on the clean air pipe.
• Slightly lift the clean air pipe (1).
• Unlock and loosen connector (3).
• Loosen clamp (4).
• Feed out clean air pipe and remove (1).

Courtesy of BMW OF NORTH AMERICA, INC.
