Removing the rear firewall
Removing the rear firewall

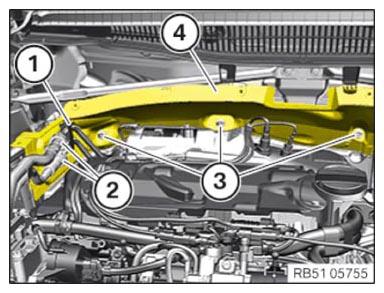

Unlock holder
(1)
and disconnect.
Guide out and remove the fuel lines
(2)
.
Loosen screws
(3)
.
Guide out and remove the rear firewall
(4)
.
