Installing fuel delivery line

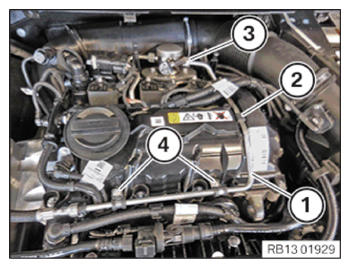

- Guide the fuel delivery line (1) in and install.
- Make sure that the rubber damper (2) is positioned correctly.
- Tighten the union nut (3) hand-tight.
- Hand-tighten the bolts (4).
- Tighten down screws (3).
TIGHTENING TORQUE SPECIFICATIONS
| Fuel delivery line to cylinder head cover | ||
|---|---|---|
| M6x18 | tightening torque | 7 Nm |
- Tighten union nut (2).
TIGHTENING TORQUE SPECIFICATIONS
| Fuel delivery line to high pressure pump | ||
|---|---|---|
| M14 | Tightening torque | 26 Nm |
- Connect the fuel line (1) to the fuel supply line (5) and lock.
- Ensure that the fuel line (1) audibly engages.
- Ensure that the rubber damper (4) is correctly installed.

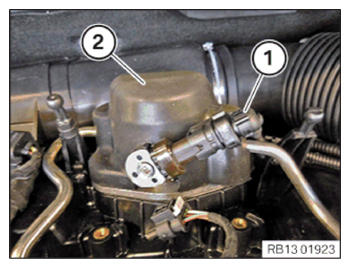

- Insert and install the sound insulation (2).
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.

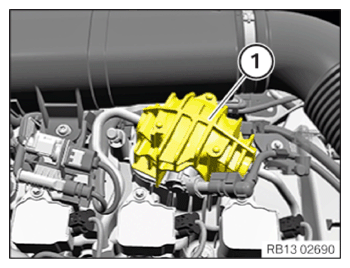

- Feed in and install cover (1).
Follow-up work
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE UPPER FIREWALL COVER PANEL .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to INSTALLING FRONT WINDSHIELD PANEL COVER .
- Refer to INSTALLING THE REAR HOOD SEAL .
- Refer to CONNECTING THE BATTERY EARTH LEAD .
