17 11 035 Removing and installing/replacing fan cowl with electric fan

When the engine is switched off after the end of the journey, it may be necessary to operate the electric fan. In rare cases, the electric fan may operate for up to 11 minutes. This serves the component protection. In this context, replacing the electric fan will not remedy the problem!

Necessary preliminary tasks:

• Remove CROSS CONNECTION .

Removal:

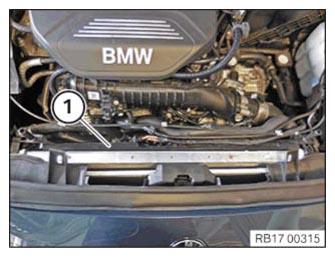

Remove sealing (1) from radiator.

Courtesy of BMW OF NORTH AMERICA, INC.

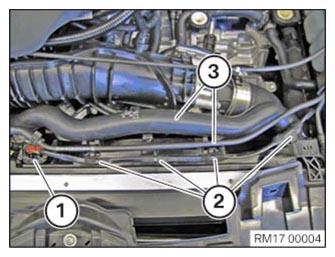

Unlock and pull off connector (1) from fan cowl.

Unclip clips (2) from fan cowl and place cable to one side.

Unclip coolant hose (3) and unclip coolant ventilation line (3) from the fan cowl.

Courtesy of BMW OF NORTH AMERICA, INC.

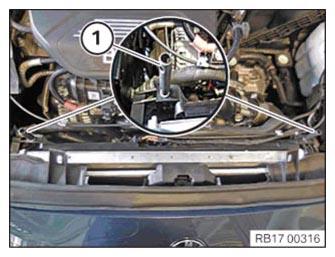

Release screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

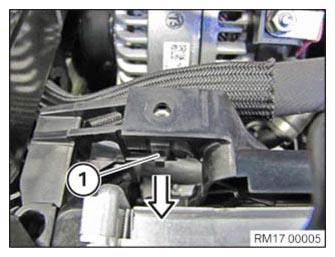

Unlock right lock (1) on fan cowl.

Courtesy of BMW OF NORTH AMERICA, INC.

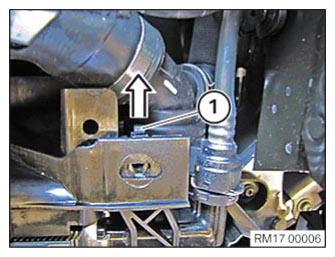

Unlock left lock (1) on fan cowl.

Courtesy of BMW OF NORTH AMERICA, INC.

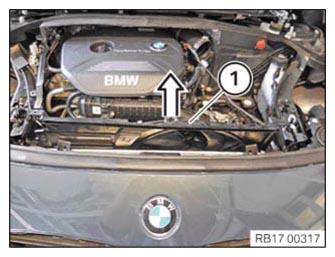

Feed out fan cowl (1) in direction of arrow and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

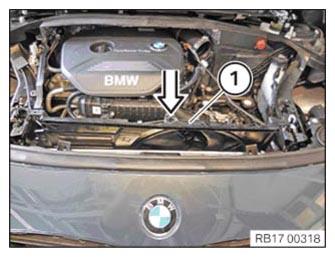

Feed in fan cowl (1) in direction of arrow and install.

Courtesy of BMW OF NORTH AMERICA, INC.

Lock right lock (1) on fan cowl.

Courtesy of BMW OF NORTH AMERICA, INC.

Lock left lock (1) on fan cowl.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque 17 10 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connector (1) to fan cowl.

Connector (1) must engage audibly.

Connect clips (2) to fan cowl.

Connect coolant hose (3) and clip coolant ventilation line (3) onto the fan cowl.

Courtesy of BMW OF NORTH AMERICA, INC.

Install sealing (1) on radiator.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work

• Install CROSS CONNECTION
