Cross Connection Removal And Installation

Read contents of BODY, GENERAL .

For stripping and rebuilding operations, see the surrounding texts on the KSD (flat rate unit number 41 33 210).

Necessary preliminary work

• Remove INTAKE SILENCER HOUSING .

Removal

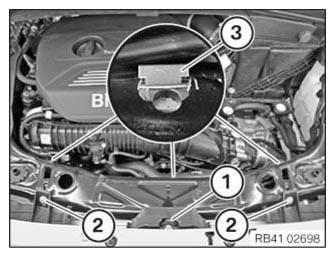

Release screws (1) and (2).

Release the clamps (3) for the Bowden cable of the bonnet lock.

Courtesy of BMW OF NORTH AMERICA, INC.

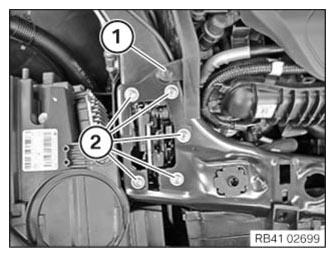

Lever out expanding rivet (1).

Unfasten screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

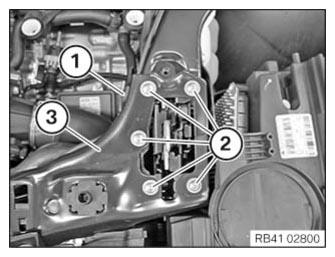

Lever out expanding rivet (1).

Release screws (2) and remove the cross connection (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Installed on the right side only on vehicles with production date as of: 12/2016

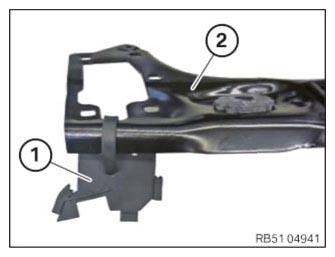

Secure the spray guard (1) on the cross connection (2) as illustrated.

Courtesy of BMW OF NORTH AMERICA, INC.

Install cross connection. Fit all screws.

Tighten screw (1).

Tightening torque: FRONT APRON .

Tighten down screws (2).

Tightening torque: GASKETS AND LOOSE BODY COMPONENTS

Secure the clamps (3) for the Bowden cable of the bonnet lock on the cross connection.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (2).

Tightening torque: FRONT APRON .

Join expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (2).

Tightening torque: FRONT APRON .

Join expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installed on the right side only on vehicles with production date as of: 12/2016

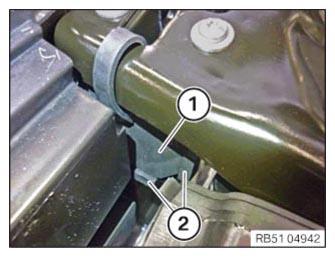

Properly mount spray guard (1) to prevent corrosion.

Secure the spray guard (1) by means of the retaining tabs (2) on the locking bridge.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install INTAKE SILENCER HOUSING .
