51 71 412 Removing and installing/replacing rear spoiler

WARNING: This page is about a different car, the 2019 BMW X1, 2018 BMW X1, 2017 BMW X1, and 2016 BMW X1. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM FOR REAR WINDOW FRAME, TOP

Removal:

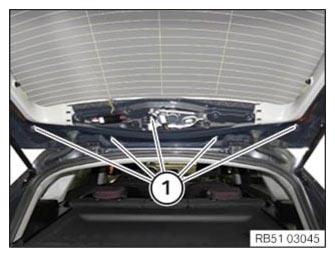

Lift out the sealing cap and loosen screws (1) underneath.

Courtesy of BMW OF NORTH AMERICA, INC.

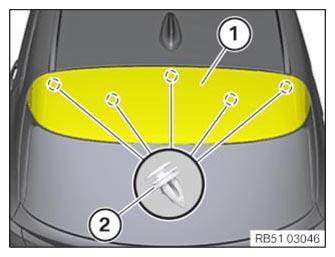

Unclip the trim (1) from the clips (2).

Remove trim (1) towards the front.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Check sealing rings on clips (2).

If sealing rings are damaged, replace clips (2).

Feed in trim (1) towards the rear.

Clip in the trim (1) into the clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws (1) and install the sealing caps.

Tightening torque 51 71 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install TRIM FOR REAR WINDOW FRAME, TOP
