51 49 015 Removing and installing/replacing cover for rear window frame at top
WARNING: This page is about a different car, the 2019 BMW X1, 2018 BMW X1, 2017 BMW X1, and 2016 BMW X1. However, it is still accessible from the selected car via links, so may be relevant.
Removal:

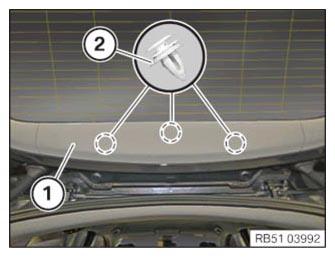

Unclip the trim (1) from the clips (2) and remove towards the bottom.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Installation:
NOTE:
The clips (1) and guides must not be damaged or missing.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Install the trim (1) and clip into the clips (2).
Courtesy of BMW OF NORTH AMERICA, INC.
|
