51 47... Removing and installing/replacing luggage compartment well

WARNING: This page is about a different car, the 2019 BMW X1, 2018 BMW X1, 2017 BMW X1, and 2016 BMW X1. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL

Removal:

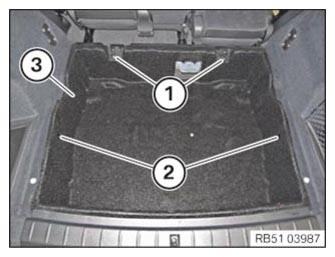

Release expanding rivet (1).

Unfasten screws (2).

Lift the luggage compartment well (3) and remove towards the rear.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert the luggage compartment well (3).

Tighten down screws (2).

Tightening torque 51 47 7AZ .

Mount expanding rivets (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install LUGGAGE COMPARTMENT FLOOR TRIM PANEL
