51 47 101 Removing and installing/replacing luggage compartment floor trim panel
WARNING: This page is about a different car, the 2019 BMW X1, 2018 BMW X1, 2017 BMW X1, and 2016 BMW X1. However, it is still accessible from the selected car via links, so may be relevant.
Removal:

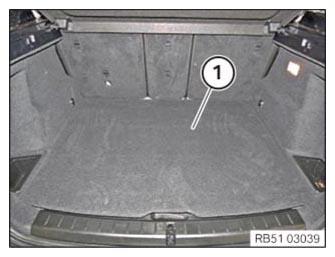

Lift luggage compartment floor trim panel (1) at rear so that it can be detached from the guides at the front.
Remove luggage compartment floor trim panel (1) from the vehicle.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Installation:
Attach luggage compartment floor trim panel (1) at front in guides and lay down at rear.
Courtesy of BMW OF NORTH AMERICA, INC.
|
