51 46 050 Removing and installing/replacing top cover on tail panel

WARNING: This page is about a different car, the 2019 BMW X1, 2018 BMW X1, 2017 BMW X1, and 2016 BMW X1. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT WELL

Removal:

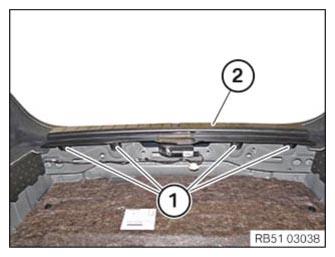

Release expanding rivets (1) from tail panel trim (2).

Lift off trim on tail panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install trim on tail panel (2).

Mount expanding rivets (1) on tail panel trim (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install LUGGAGE COMPARTMENT WELL
