51 41 000 Removing and installing (replacing) front left or right door trim panel

WARNING: This page is about a different car, the 2019 BMW X1, 2018 BMW X1, 2017 BMW X1, and 2016 BMW X1. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

Necessary preliminary tasks:

Remove SWITCH FOR POWER WINDOW REGULATOR

Removal:

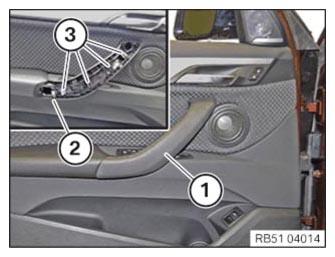

Lever out and remove the trim (1) from the clamps (3) towards the inside through the recess (2) using a small screwdriver.

G12956698

Courtesy of BMW OF NORTH AMERICA, INC.

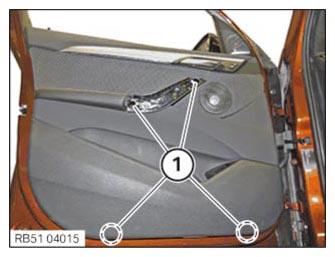

Release screws (1).

G12956699

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip door trim panel at clips (1) using special tool 00 9 325 (starting in area of A-pillar).

Unclip door trim panel at top from clips (2).

G11112172

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage Bowden cable (1) from door lock (2).

Disconnect all plug connections and remove door trim panel.

G04749830

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Hold door trim panel in position and connect all plug connections.

Attach Bowden cable (1) to door lock (2).

G04749830

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Replace faulty clips (1).
Fit all clips with sealing ring.

Clip door trim panel at top into clamps (2).

Clip door trim panel into clips (1).

G11112172

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque 51 41 1AZ .

G12956699

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check the clamps (3), they must not be damaged or missing.

Install the trim (1) and engage with the clamps (3).

G12956698

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: After assembling the door trim panel proceed as follows:

Open side window
Lock with ignition key
Check for ease of movement on locking button linkage
If necessary, align linkage

Required follow-up work:

Install SWITCH FOR POWER WINDOW REGULATOR
