11 41 000 Removing and installing or replacing oil/vacuum pump (B48AO0)

IMPORTANT: It is possible to remove and install the oil/vacuum pump without removing the transmission.

Necessary preliminary tasks:

REMOVAL:

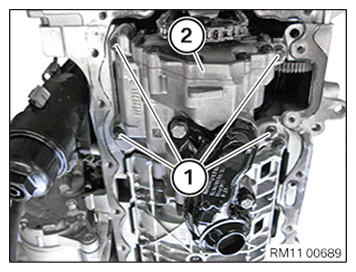

Release screws (1) of oil/vacuum pump (2).

Courtesy of BMW OF NORTH AMERICA, INC.

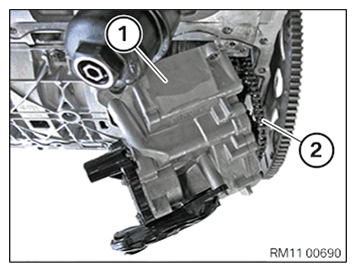

Remove oil/vacuum pump (1) and feed out of drive chain (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

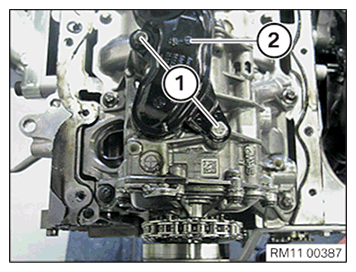

Release screws (1). Remount intake pipe (2).

Tighten down screws (1).

Tightening torque: 11 41 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

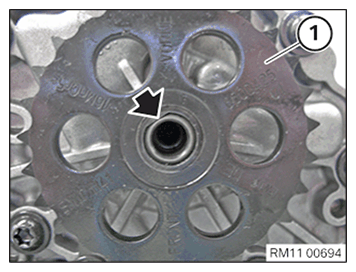

IMPORTANT: Pay attention to mounting flats on oil pump (see arrow).
Labelling "Front" on the camshaft sprocket (1) needs to be visible.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

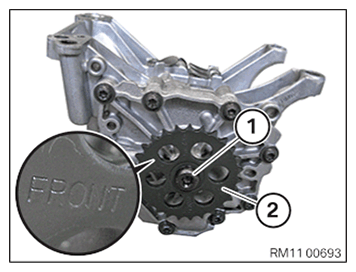

IMPORTANT: Screw (1) has left-hand thread.
"Front" needs to be legible on the camshaft sprocket.

Hold down camshaft sprocket (2) with a suitable tool. Release screw (1). Remount camshaft sprocket.

Parts: Replace screw (1).

Mount camshaft sprocket (2) and hold down with a suitable tool. Tighten screw (1).

Tightening torque: 11 41 5AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

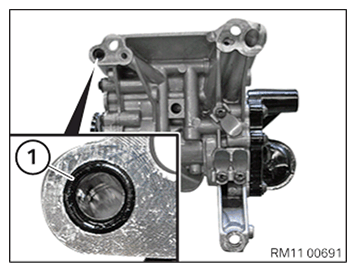

IMPORTANT: Sealing ring (1) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

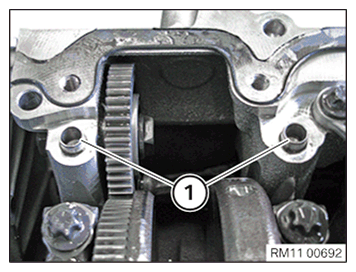

Check centering bushes for damage, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed oil/vacuum pump (1) into drive chain (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1) of oil/vacuum pump (2).

Tightening torque: 11 41 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
