63 25 000 Removing and installing/replacing additional brake light

Attention!

FOLLOW NOTES FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Necessary preliminary work:

• Remove the REAR SPOILER

Removal:

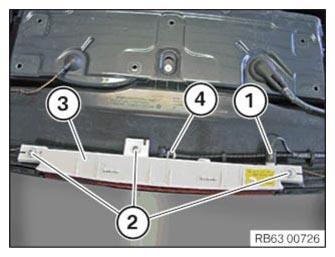

Unlock and disconnect connector (1) on additional brake light (3).

Release screws (2).

Detach additional brake light (3) and disconnect hose pipe (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect hose pipe (4) to additional brake light (3).

Join additional brake light (3).

Tighten all screws (2) on additional brake light (3).

Tightening torque, refer to: 63 25 1AZ .

Connect connector (1) to additional brake light (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Attach the REAR SPOILER
