63 21 030 Replacing bulb holder for left or right rear light (side panel)

Necessary preliminary work:

• Remove the REAR LIGHT

Removal:

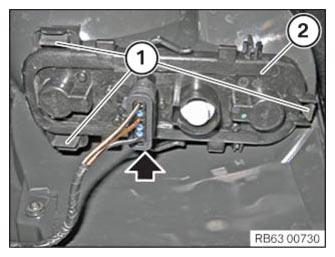

Unlock and disconnect corresponding connector as necessary.

Press the locks (1) together to disengage them.

Remove the bulb socket (2) from the rear light.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

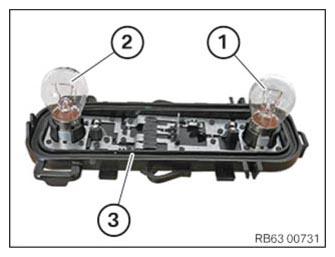

Remount the bulbs (1; 2).

Do this by carefully pressing bulbs (1; 2) into bulb holder (3) and turning anti-clockwise.

Then pull out bulb (1; 2) from bulb holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Insert bulb (1; 2) into new part of bulb holder (3).

Then carefully press bulb (1; 2) into bulb holder (3) and press to the right up to the limit position.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert the bulb socket (2) into the rear light.

Connect corresponding connector as necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary Follow-up work:

• Install the REAR LIGHT
