63 21 275 Removing and installing/replacing left, rear light (on side wall)

Removal:

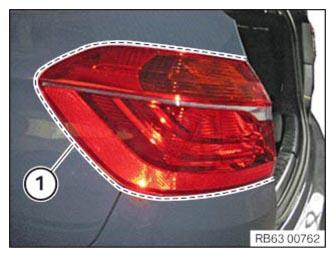

Tape off entire area (1) with yellow plastic adhesive tape.

Courtesy of BMW OF NORTH AMERICA, INC.

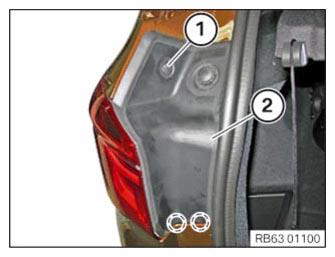

Release screw (1).

Carefully unclip the trim for the water channel (2) from the rear light.

Courtesy of BMW OF NORTH AMERICA, INC.

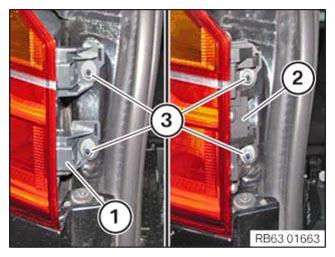

Loosen nuts (3) on the rear light with integrated screw straps (1) or on rear light with screwed screw strap support (2).

Courtesy of BMW OF NORTH AMERICA, INC.

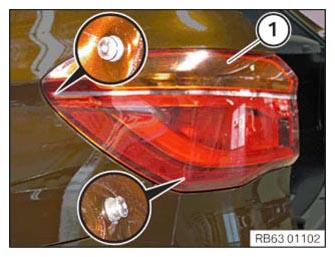

Pull rear light (1) evenly out of the side panel and the guides.

Courtesy of BMW OF NORTH AMERICA, INC.

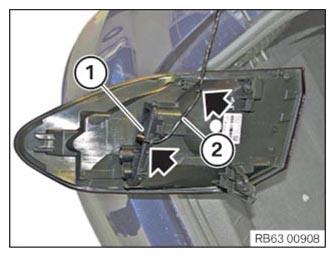

Unlock and disconnect connector (1).

Release cable (2) from holders.

Remove rear light.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

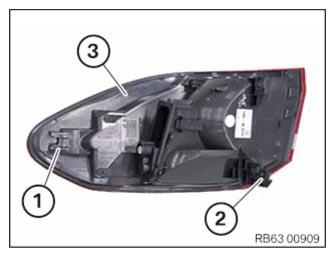

Guide (1) and gasket (2) on rear light (3) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connector (1) with the rear light.

Install cable (2) in the brackets.

Courtesy of BMW OF NORTH AMERICA, INC.

Join the rear light (1) in the side panel.

Installation note:

Make sure rear light (1) fits correctly seated in the guides.

Make sure gap dimension (outer) is uniform all round between rear light (1) and side wall.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten rear light using nuts (3).

Tightening torque on rear lights (1) with integrated screw straps, refer to: 63 21 1AZ .

Tightening torque on rear lights (2) with screwed screw strap support, refer to: 63 21 4AZ

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in the trim for the water channel (2) at the rear light.

Tighten screw (1).

Remove plastic adhesive tape.

Installation note:

Check trim for water channel (2) is correctly seated.

Courtesy of BMW OF NORTH AMERICA, INC.
