63 11 840 Replacing left LED fan (outer)

Necessary preliminary tasks:

Removal:

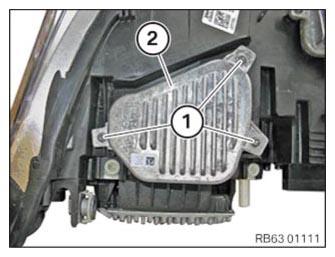

Loosen the screws (1) on the daytime driving lights module (2).

Pull the daytime driving lights module (2) from the headlights.

Courtesy of BMW OF NORTH AMERICA, INC.

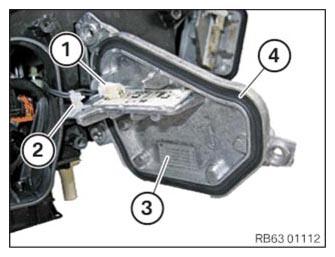

Unlock and disconnect the connector (1).

Unclip cable tie (2).

Remove the daytime driving lights module (3).

Courtesy of BMW OF NORTH AMERICA, INC.

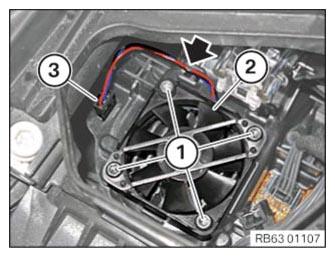

Release screws (1).

Guide out access line.

Remove fan (2).

Unlock and disconnect connector (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect connector (3).

Install fan (2).

Tighten down screws (1).

Tightening torque, refer to: 63 11 4AZ .

Guide in access line.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the connector (1).

Clip in cable clip (2).

Installation note:

The gasket (4) on the daytime driving lights module (3) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert the daytime driving lights module (2) into the headlights.

Tighten down screws (1).

Tightening torque, refer to: 63 11 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
