63 11 820 Replacing left cornering light LED module

Necessary preliminary tasks:

• Remove the HEADLIGHT - LED TECHNOLOGY -

Removal:

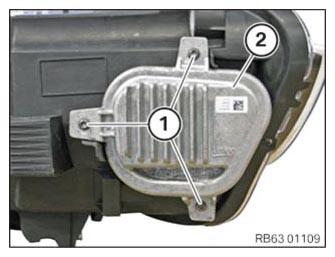

Loosen the screws (1) on the LED module for the cornering light (2).

Pull the LED module for the cornering light (2) from the headlights.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect the connector (1).

Remove the LED module for the cornering light (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect the connector (1).

Installation note:

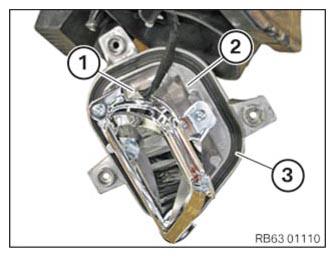

The gasket (3) on the LED module for the cornering light (2) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert the LED module for the cornering light (2) into the headlights.

Tighten down screws (1).

Tightening torque, refer to: 63 11 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install the HEADLIGHT - LED TECHNOLOGY -
