63 11 731 Replacing the LED module(s) for the daytime driving lights

Necessary preliminary tasks:

• Remove the HEADLIGHT - LED TECHNOLOGY -

Removal:

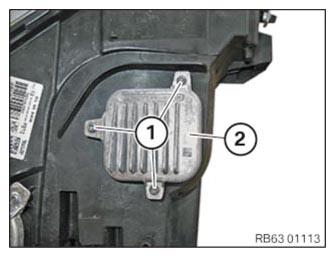

Loosen the screws (1) on the daytime driving lights module (2).

Pull the daytime driving lights module (2) from the headlights.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect the connector (1).

Unclip cable tie (2).

Remove the daytime driving lights module (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen the screws (1) on the daytime driving lights module (2).

Pull the daytime driving lights module (2) from the headlights.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect the connector (1).

Unclip cable tie (2).

Remove the daytime driving lights module (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect the connector (1).

Clip in cable clip (2).

Installation note:

The gasket (4) on the daytime driving lights module (3) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert the daytime driving lights module (2) into the headlights.

Tighten down screws (1).

Tightening torque, refer to: 63 11 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the connector (1).

Clip in cable clip (2).

Installation note:

The gasket (4) on the daytime driving lights module (3) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert the daytime driving lights module (2) into the headlights.

Tighten down screws (1).

Tightening torque, refer to: 63 11 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install the HEADLIGHT - LED TECHNOLOGY -
