51 45... Removing and installing the trim panel in the footwell at the bottom left

WARNING: This page is about a different car, the 2019 BMW X1, 2018 BMW X1, 2017 BMW X1, and 2016 BMW X1. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FOLD-DOWN COMPARTMENT ON DRIVER'S SIDE

Removal:

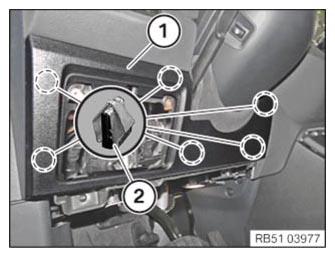

Loosen and remove the trim (1) from the clamps (2) towards the bottom.

Courtesy of BMW OF NORTH AMERICA, INC.

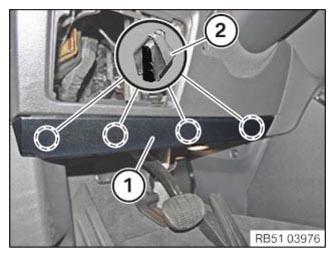

Release trim panel (1) from clamps (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install the trim panel (1) and engage with the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Engage trim (1) in clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install the FOLD-DOWN COMPARTMENT ON DRIVER'S SIDE
