51 45... Removing and installing (replacing) side center console trim panel

WARNING: This page is about a different car, the 2019 BMW X1, 2018 BMW X1, 2017 BMW X1, and 2016 BMW X1. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Right side only:

Remove BOTTOM RIGHT DASHBOARD TRIM PANEL

Removal:

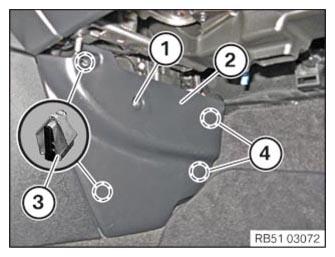

Release screw (1).

Release side center console trim panel (2) from the retaining clips (3).

Feed out side center console trim panel (2) from the guides (4) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in trim panel (2) into the guides (4) and lock in the clamps (3).

Tighten screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Right side only:

Install BOTTOM RIGHT INSTRUMENT PANEL TRIM PANEL
