51 16 206 Removing and installing/replacing center armrest

WARNING: This page is about a different car, the 2019 BMW X1, 2018 BMW X1, 2017 BMW X1, and 2016 BMW X1. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR CENTER CONSOLE TRIM

Removal:

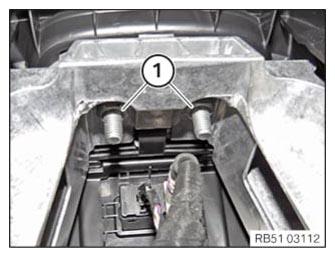

Release nuts (1) and remove center armrest upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replacement:

If necessary, remount BASE PLATE

Install center armrest and tighten nuts (1).

Tightening torque 51 16 5AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install REAR CENTER CONSOLE TRIM
