Installing the interior antenna

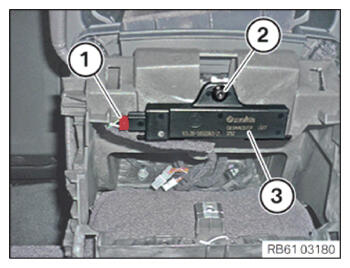

- Position the interior antenna (3) and tighten the Screw (2) .
TIGHTENING TORQUE SPECIFICATION
| Interior antenna on support of rear center console | ||
|---|---|---|
| Screw | tightening torque | 2.3 Nm |
- Connect plug (1) .
Follow-up work
- Refer to INSTALLING RIGHT FOOTWELL TRIM .
- Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
- Refer to INSTALLING THE CENTER STACK MODULE .
- Refer to INSTALLING THE WIRELESS CHARGING STORAGE .
- Refer to INSTALLING THE CUP HOLDER .
- Refer to INSTALLING THE CENTRAL INFORMATION DISPLAY (CID) .
- Refer to INSTALLING THE SPEAKER TRIM AT THE DASHBOARD .
- Refer to INSTALLING CENTER ARMREST .
- Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
- Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
- Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
