Installing roof frame cover
- Prepare the glue cartridge with the standard nozzle C.

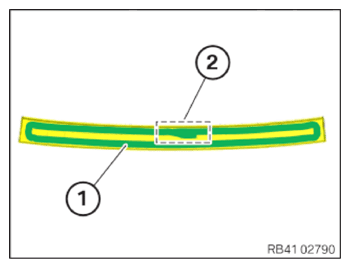

- Apply adhesive in area (1)
.
Position bead joint in the area (2) .
TECHNICAL DATA SPECIFICATION
| C-nozzle | ||
|---|---|---|
| For windshields, rear windows, and body-specific side window glass | Diameter A | 7.5 +1-1 min |
| Height B | 13 +1-1 mm | |
ADHESIVE SPECIFICATION
| Window glass adhesive USA |
300 ml, Cartridge | 83192289181 |
ADHESIVE SPECIFICATION
| Window glass adhesive (single cartridge) | 300 ml, Rest of World | 83192289286 |
| 300 ml, USA | 83192289181 | |
| 300 ml, CHN | 83192180002 |
ADHESIVE SPECIFICATION
| Window glass adhesive CHN |
300 ml, Cartridge | 83192180002 |

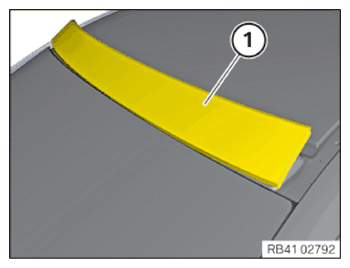

- Feed in trim (1) at an angle below the sealing lip of the windshield and fold downwards.
- Move the trim (1) to the correct position by pressing.
TECHNICAL DATA SPECIFICATION
| Gap dimension windshield to roof outer skin | ||
|---|---|---|
| 1 windshield; 2 roof outer skin | a | 4.3 +1.2-1.2 mm |
| b | 1.5 +1-1.5 mm | |
TECHNICAL DATA SPECIFICATION
| Gap dimension roof outer skin to glass slide/tilt sunroof panel | ||
|---|---|---|
| 1 roof outer skin; 2 glass slide/tilt sunroof panel | a | 0.6 +0.75-0.75 mm |
NOTE:
The steps shown on one side must be performed on both sides.

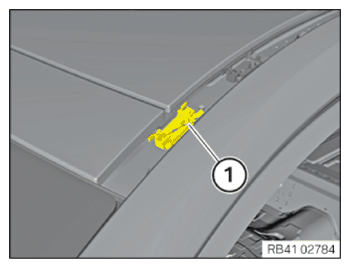

- Position clamp (1) on the bolt and slide to the rear.
Follow-up work
- Refer to INSTALLING BOTH THE ROOF TRIM STRIPS .
