Installing both the roof trim strips

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the roof trim strip

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Replacing the clamps for the roof trim strip (equipment version with CFRP roof)

NOTE: TECHNICAL INFORMATION
The temperature of the roof skin and the clamps must be at least 20°C. The outer roof skin and the clamps can, if necessary, be warmed up with a hair dryer to maximum 40°C.

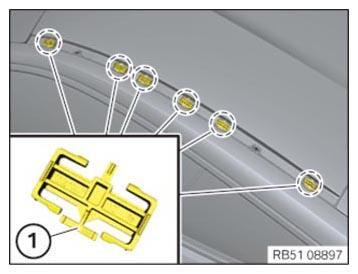

Remove all clamps (1).
All the positions of the clamps are marked with marker lines.
Completely remove all residue adhesive tape.

Courtesy of BMW OF NORTH AMERICA, INC.

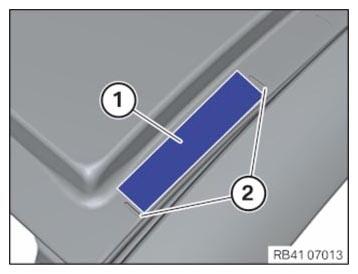

Make sure that all bonding surfaces (1) on the roof outer skin are marked with marker lines (2).
Clean bonding surfaces (1) with the solvent cleaner and a microfiber cloth.
CONSUMABLE DESCRIPTION

Cleaning agent R2 500 ml 83190417324
Prime bonding surfaces (1) and give a final wipe immediately with a dry microfiber cloth.

Courtesy of BMW OF NORTH AMERICA, INC.

ADHESIVE SPECIFICATION

Activator -205 250 ml, Bottle 83190030155
Allow bonding surfaces (1) to dry for 2 mins.
Replace the clamps (1).
Parts: Clamp
Detach the protective film from the clamp (1).

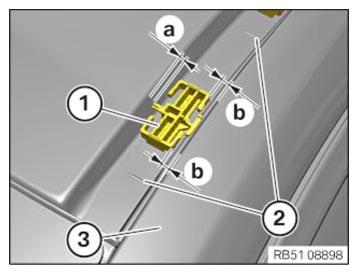

Position clamp (1) in the center between marker lines (2).
Dimension (a) = 1 mm
Ensure that clamp (1) is aligned parallel to roof frame (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Dimension (b) = Dimension (b)
Press the clamp (1) with both thumbs firmly and completely for at least 5 s.
NOTE: Stronger pressure and longer time increase the firmness.
Repeat the steps with all other clamps.

NOTE: TECHNICAL INFORMATION
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE .

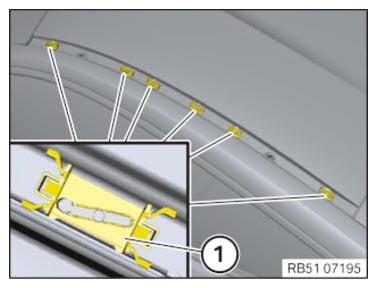

Check whether the clamps (1) are present and have damage.

Courtesy of BMW OF NORTH AMERICA, INC.
Defective or missing clamps (1) need to be replaced.

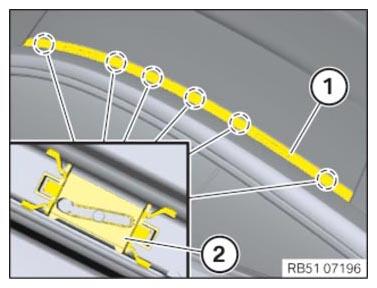

Carefully attach the roof trim strip (1) and clip it in at the clips (2) starting at the rear.

Courtesy of BMW OF NORTH AMERICA, INC.
