Installing the air duct at the bottom

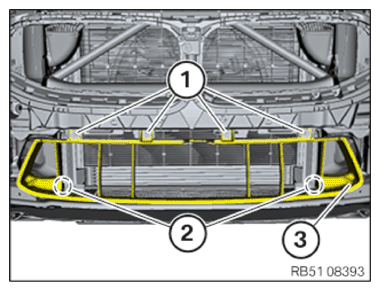

- Feed in and position bottom air flap control (3) from the front.
- Mount the expanding rivets (2) .
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATION
| Air duct below at cross member cover | ||
|---|---|---|
| Hexagon screw for thermoplastic | tightening torque | 3 Nm |
Follow-up work
- Refer to IF INSTALLED: INSTALLING FRONT RADAR SENSOR (FRS) WITH BRACKET .
- Refer to INSTALLING FRONT BUMPER COVER .
- Refer to PARTIALLY INSTALLING THE TEMPERATURE SENSOR .
- Refer to PARTIALLY INSTALLING BOTH FRONT WHEEL ARCH COVERS .
- Refer to INSTALLING CENTER RADIATOR GRILLE .
- Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
- Refer to ADJUSTING THE FRONT RADAR SENSOR (FRS) .
