Install front bumper cover
- Position the front bumper cover and connect and lock the connector if applicable.
- Clip the front bumper cover into the detents (1) .
NOTE:
Perform the steps on the right and left side.
- Connect connectors (1) and lock.
- Attach the connector (1) to the bracket (2) .
- Clip the wiring harness into the bracket (3) .
NOTE:
Perform the steps on the right and left side.

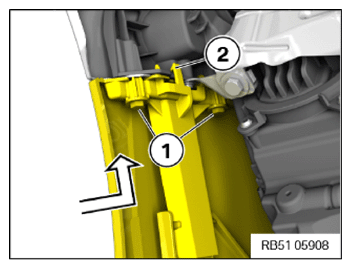

- Feed the front bumper cover at side into the guides in direction of arrow and clip into the detent (2) .
- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATION
| Front bumper panel to fender | ||
|---|---|---|
| Thermoplastic screw 5x35 |
Tightening torque | 3 Nm |
- Tighten screws (2) .
TIGHTENING TORQUE SPECIFICATION
| Front bumper panel to undershield | ||
|---|---|---|
| Thermoplastic hexagon screw | tightening torque | 3 Nm |
- Secure expanding rivet (1) .
Follow-up work
- Refer to PARTIALLY INSTALLING THE TEMPERATURE SENSOR .
- Refer to PARTIALLY INSTALLING BOTH FRONT WHEEL ARCH COVERS .
- Refer to INSTALLING CENTER RADIATOR GRILLE .
- Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
