Remounting the LED turn signal

Preliminary work

• Refer to REMOVING THE CENTER ENGINE COMPARTMENT COVER .
• Refer to REMOVING CENTER RADIATOR ORNAMENTAL GRILLE .
• Refer to PARTIALLY REMOVING BOTH WHEEL ARCH COVERS IN FRONT .
• Refer to PARTIALLY REMOVING TEMPERATURE SENSOR .
• Refer to REMOVING FRONT BUMPER COVER .
• Refer to REMOVING TOPPING AIR DUCT .
• Refer to REMOVING HEADLIGHT .

Removing the LED turn signal

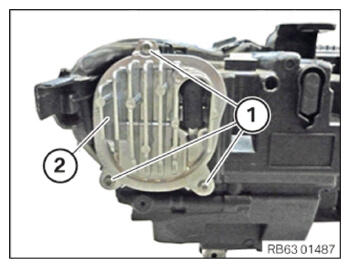

• Loosen screws (1).
• Pull the LED turn signal (2) out of the headlight.

  Courtesy of BMW OF NORTH AMERICA, INC.

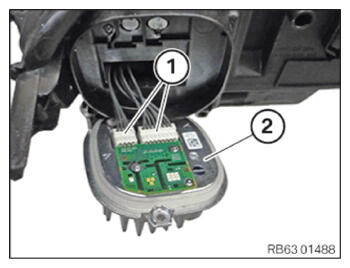

• Unlock and disconnect the connector (1) from the LED turn signal (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the LED turn signal

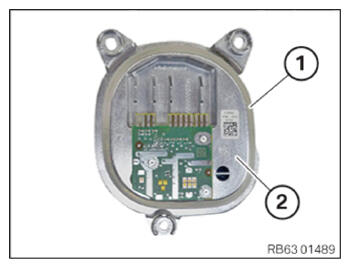

• Check the seal (1) on the LED turn signal (2) for damage and replace it if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the plug connector (1) to the LED turn signal (2) and lock it.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the LED turn signal (2) on the headlight.
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATION



  LED turn signal on headlight
  Screw	tightening torque	1.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.
