Installing the timing case cover at the top for cylinders 1 to 6
NOTE:
RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
- Do not use any metal-cutting tools.
- Clean the sealing surfaces (1)
on the timing case cover with the special tool 0 495 102 (11 4 470)
.
- Replace the seal (2)
.
Parts: Seal
- Check the fitting sleeves (1) for secure fit and damage.
- Clean the sealing surfaces (2) on the cylinder head with the special tool 0 495 102 (11 4 470) .
- Position new seal on the fitting sleeves.
- Position the timing case cover at the cylinder head.
- Fit the timing case cover onto the fitting sleeves on the cylinder head.
- Tighten all screws (1)
and (2)
.TIGHTENING TORQUE SPECIFICATIONS

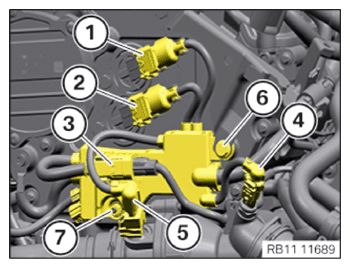

End cover (oil) to crankcase M6x30 Tightening torque 10 Nm - Position the cable distributor.
- Tighten nut (7)
.TIGHTENING TORQUE SPECIFICATIONS
cable distributor to cylinder head Nut Tightening torque 5 Nm - Tighten down screw (6)
.TIGHTENING TORQUE SPECIFICATIONS
cable distributor to cylinder head M6x16 Tightening torque 10 Nm - Attach and lock the connector (1) .
- Attach and lock the connector (2) .
- Attach and lock the connector (3) .
- Attach and lock the connector (4) .
- Attach and lock the connector (5) .
Follow-up work
- Refer to INSTALLING BOTH SOLENOID VALVES ON THE RIGHT .
- Refer to INSTALLING THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to INSTALLING THE CYLINDER HEAD COVER ON THE RIGHT .
- Refer to FASTENING THE COOLANT FEED LINE FOR THE RIGHT TURBOCHARGER .
- Refer to CONNECTING THE COOLANT HOSE TO THE RADIATOR .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to PREPARING THE INJECTOR FOR INSTALLATION .
- Refer to INSTALLING INJECTORS .
- Refer to INSTALLING RIGHT HIGH PRESSURE PUMP .
- Refer to INSTALLING THE RIGHT HIGH-PRESSURE RAIL .
- Refer to INSTALLING ALL HIGH PRESSURE LINES BETWEEN THE RAIL AND THE INJECTORS .
- Refer to INSTALLING FUEL DELIVERY LINE .
- Refer to INSTALLING THE HIGH-PRESSURE LINE ON THE RIGHT BETWEEN THE HIGH-PRESSURE PUMP AND THE HIGH-PRESSURE RAIL .
- Refer to INSTALLING THE RIGHT-HAND CHARGE AIR PIPE .
- Refer to INSTALLING TOP RIGHT CLEAN AIR PIPE .
- Refer to PARTIALLY FASTENING THE WIRING HARNESS ON THE RIGHT CYLINDER HEAD COVER .
- Refer to CONNECTING ALL THE CONNECTORS TO THE DME CONTROL UNIT FOR CYLINDERS 1 TO 6 AND TO THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to INSTALLING COVER FOR THE RIGHT DME CONTROL UNIT .
- Refer to INSTALLING THE IGNITION COILS .
- Refer to INSTALLING THE RIGHT-HAND VENTILATION LINE .
- Refer to INSTALLING THE INTAKE PLENUM .
- Refer to INSTALLING THE TANK VENT LINE .
- Refer to INSTALLING THE ENGINE VENTILATION LINE ON THE INTAKE SYSTEM .
- Refer to MOUNTING THE LEFT-HAND CHARGE AIR COOLER .
- Refer to INSTALLING THE LEFT THROTTLE BODY .
- Refer to MOUNTING THE RIGHT-HAND CHARGE AIR COOLER .
- Refer to INSTALLING THE RIGHT THROTTLE BODY .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING LEFT INTAKE PORT .
- Refer to INSTALLING THE LEFT-HAND AIR DUCT .
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to INSTALLING RIGHT AIR DUCT .
- Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
- Refer to INSTALLING FANFARE HORN, RIGHT .
- Refer to INSTALLING THE FANFARE ON THE LEFT SIDE .
- Refer to INSTALLING THE CENTER TOP CROSS CONNECTION .
- Refer to INSTALLING BOTH HEADLIGHTS .
- Refer to INSTALLING BUMPER COVER, FRONT .
- Refer to INSTALLING FRONT SECTION OF THE FRONT WHEEL ARCH COVER (PARTIALLY REMOVED) .
- Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT CENTER .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to CHECKING THE COOLANT LEVEL IN THE LOW-TEMPERATURE COOLANT CIRCUIT AND TOPPING UP, IF NEEDED .
- Refer to FILLING THE COOLING SYSTEM WITH THE VACUUM FILLING UNIT .
- Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
- Refer to ADJUSTING HEADLIGHTS .
