Replacing bulb for side lights, front left (330i xDrive Wagon, 328d xDrive Wagon, 330i GT xDrive, 340i GT xDrive)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow INSTRUCTIONS for handling light bulbs (exterior lights).
NOTE:
Work shown on the F30 by way of example, deviations in detail are possible in other models.

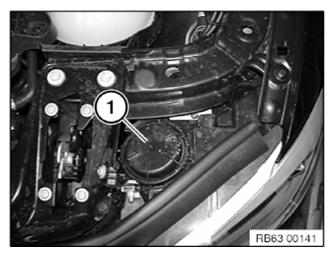

Turn protective cap (1) counterclockwise and remove.
IMPORTANT:
Risk of damage due to moisture penetration
!
Installation note:
Check seal. Replace protective cap (1) if necessary.
Comply with INSTRUCTIONS for replacing the protective cap.
Protective cap (1) must lock correctly!
Turn protective cap (1) clockwise to limit position.
Installation note:
Check seal. Replace protective cap (1) if necessary.
Comply with INSTRUCTIONS for replacing the protective cap.
Protective cap (1) must lock correctly!
Turn protective cap (1) clockwise to limit position.

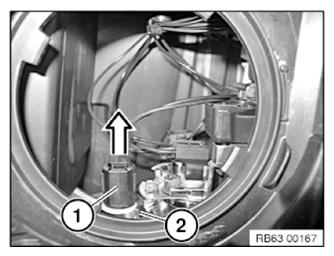

Firstly turn bulb holder (1) left and then pull out of headlight in direction of arrow.
Installation note:
Make sure bulb holder (1) is exactly seated in headlight.
NOTE:
Similar to graphic.

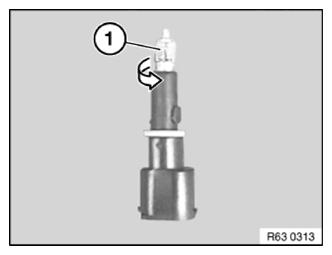

Firstly turn bulb for side lights (1) in direction of arrow and then pull out of bulb holder.
Firstly turn bulb for side lights (1) in direction of arrow and then pull out of bulb holder.
Installation note:
Note BULB TYPE .
