63 99... Notes for replacing the protective cap of the headlight (330i xDrive Wagon, 328d xDrive Wagon, 330i GT xDrive, 340i GT xDrive)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Risk of damage
!
Damaged seals on the protective caps will lead to moisture penetration into the headlight.
This will in turn cause porous cable insulations and malfunctioning of the headlight.
Damaged seals on the protective caps will lead to moisture penetration into the headlight.
This will in turn cause porous cable insulations and malfunctioning of the headlight.
When working on the headlight system, check the protective cap seals.
Replace the protective cap in the event of damage!

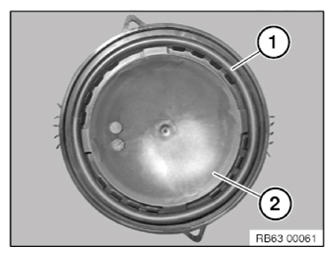

Example: screwed protective cap
Seal (1) on protective cap (2).

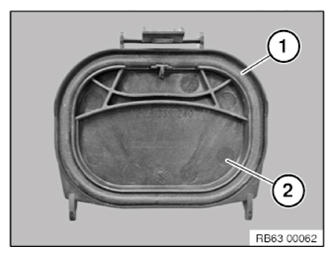

Example: latchable protective cap
Seal (1) on protective cap (2).
